COMING SOON!

We're building the very first Zenit model right now,

so real pictures will follow shortly.


Here some animations

to give you a sneak peek! :)

ZENIT

ZENIT

Zenit is a new version of the Sky model, with an additional sleeping loft and a walk-in closet, which can also serve as a separate room for a child.

​​

Thanks to its spaciousness, flexible layout, and ample storage space, it is an excellent choice for families with children.

​​

With 44 sqm living area Zenit is one of our houses in the category EXTRA LARGE.

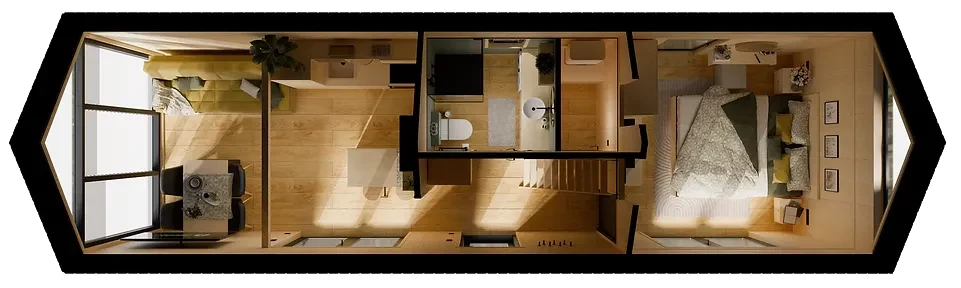

FLOORPLAN

Floorplan
widok5_z zewnątrz.png

EXTERIOR

  • Length: 11 m; width: 3,45 m; height: 4,35 m

  • Weight: ca. 10 t

  • Steel frame with wheels (for small movements on site only)

  • ThermoWood and metal sheets

  • Well insulated 3-pane windows and exterior single door from tempered glass

  • Lightweight and durable aluminum roof

  • Winter insulated with 20 cm mineral wool


Choose your favourite colour for both the facade, windows, door and roof.

INTERIOR

  • 44 sqm living area
  • Room height: 3,05 m
  • Siding from Huntonit, spruce panel or plywood
  • Laminate floor
  • Installed electricity, plumbing & ventilation

Choose your favourite colour for both the interior wall, ceiling and the floor.
Screenshot 2025-07-20 at 19.43.32.png

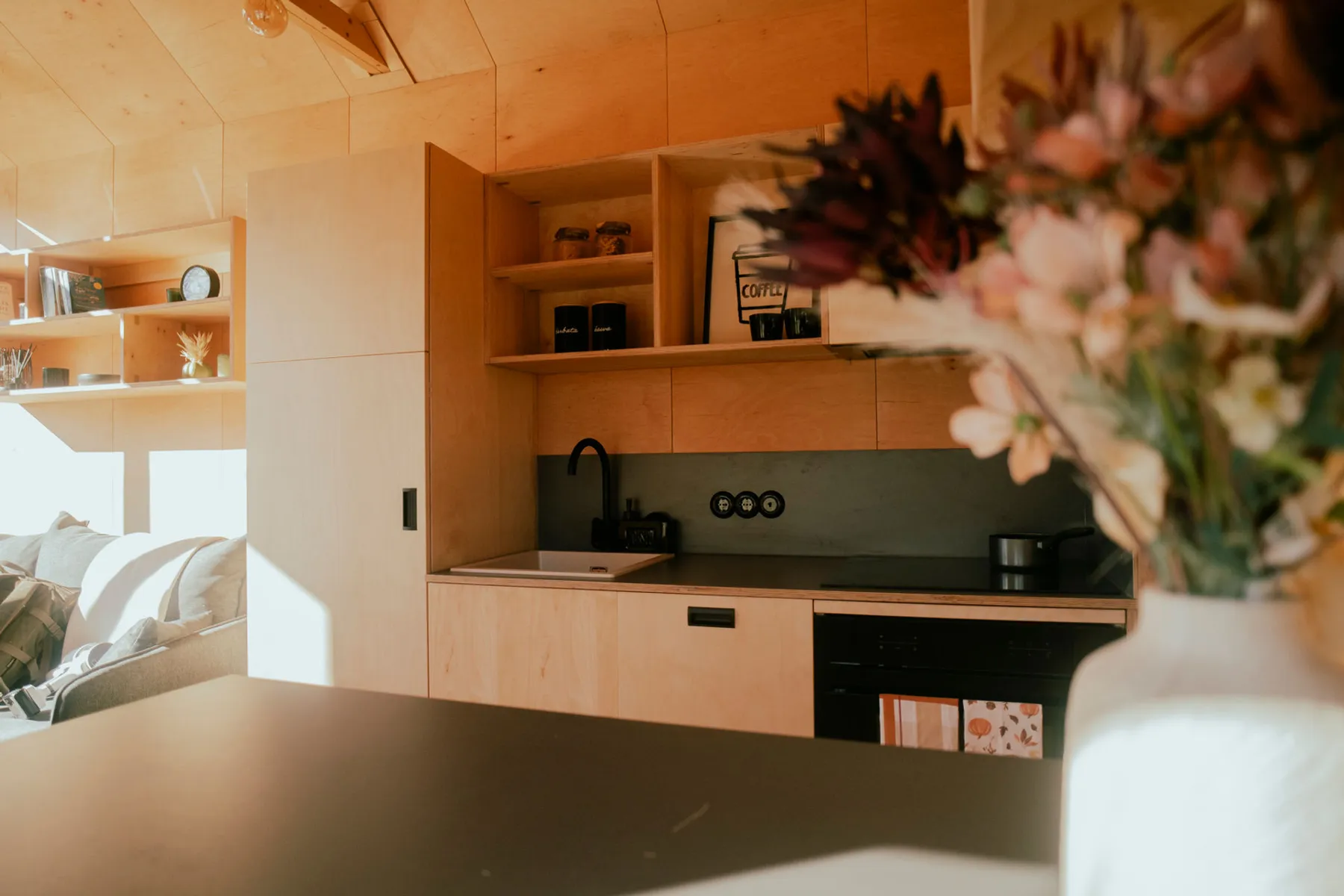

KITCHEN

  • Lower and upper cabinets of veneer or MDF
  • Three-layer oak board countertop
  • Protective glass behind countertop
  • Electric or gas stove
  • Induction or gas cooktop
  • Big fridge/freezer
  • Kitchen hood
​​
Choose your favourite colour for cabinets, countertops and protective glass.

BATHROOM

  • Wet-room approved walls from fibo trespo panels
  • Laminate or PVC floor
  • Shower cabin from glass
  • Flush toilet, composting toilet, Separett Villa or Cinderella incinerating toilet
  • Cupboard with washing basin

  • Storage cabinet with front (above the countertop)

  • Countertop above washing machine

  • Infrared or regular mirrors
  • Electric or gas hot water heaters
  • Ventilation
  • Washing machine preparation ​
​
Choose your favourite colour for cabinets and bathroom floor.

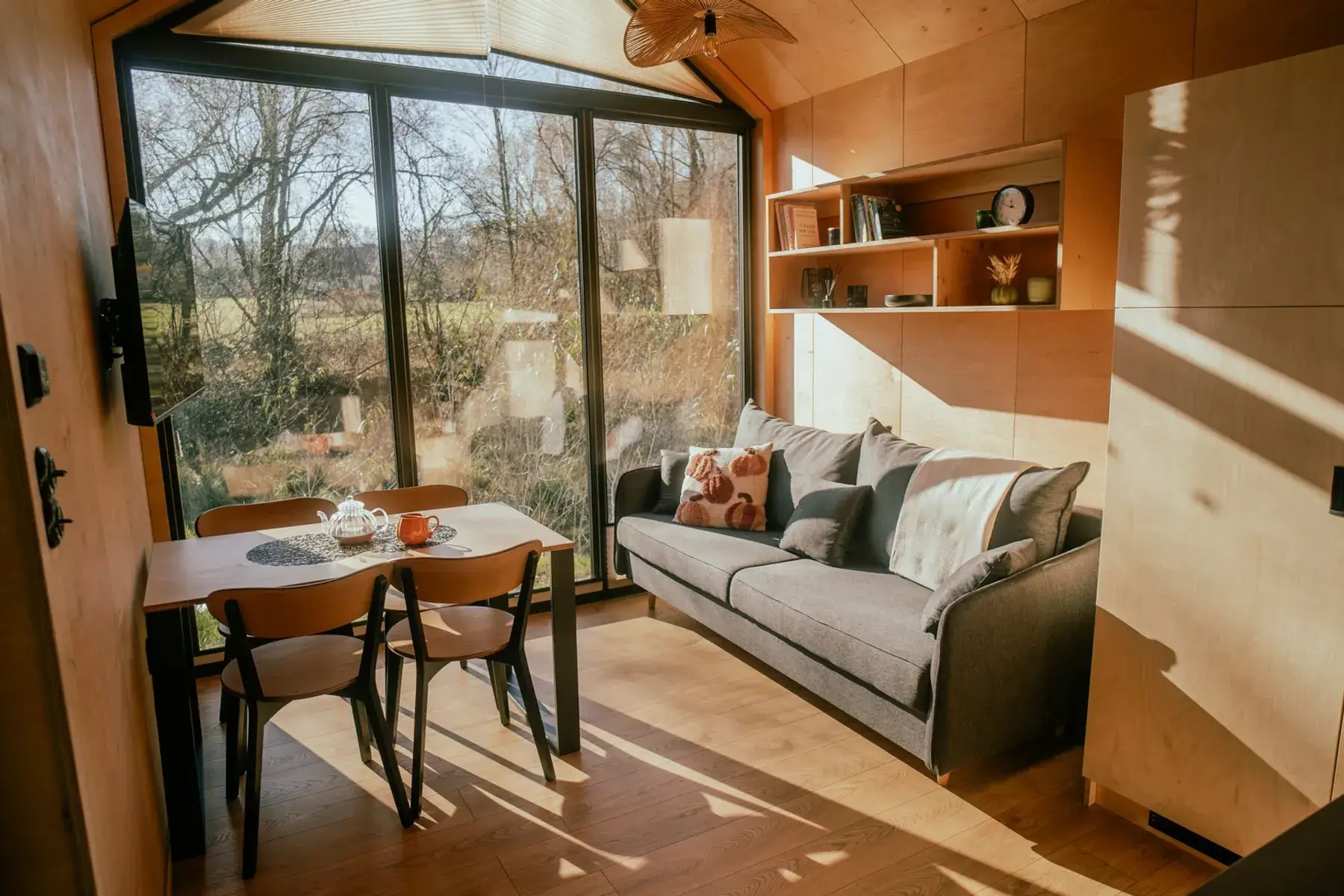

LIVING ROOM

  • Sofa with sleeping function

  • Hammock

  • TV (43 inches)

  • Table set with 4 chairs

​​
Choose your favourite colour for furniture and floor.

CORRIDOR

  • Wardrobe (double door)

  • Clothes hangers

  • Ladder

​
Choose your favourite colour for furniture and floor.
Screenshot 2025-07-20 at 19.45.46.png

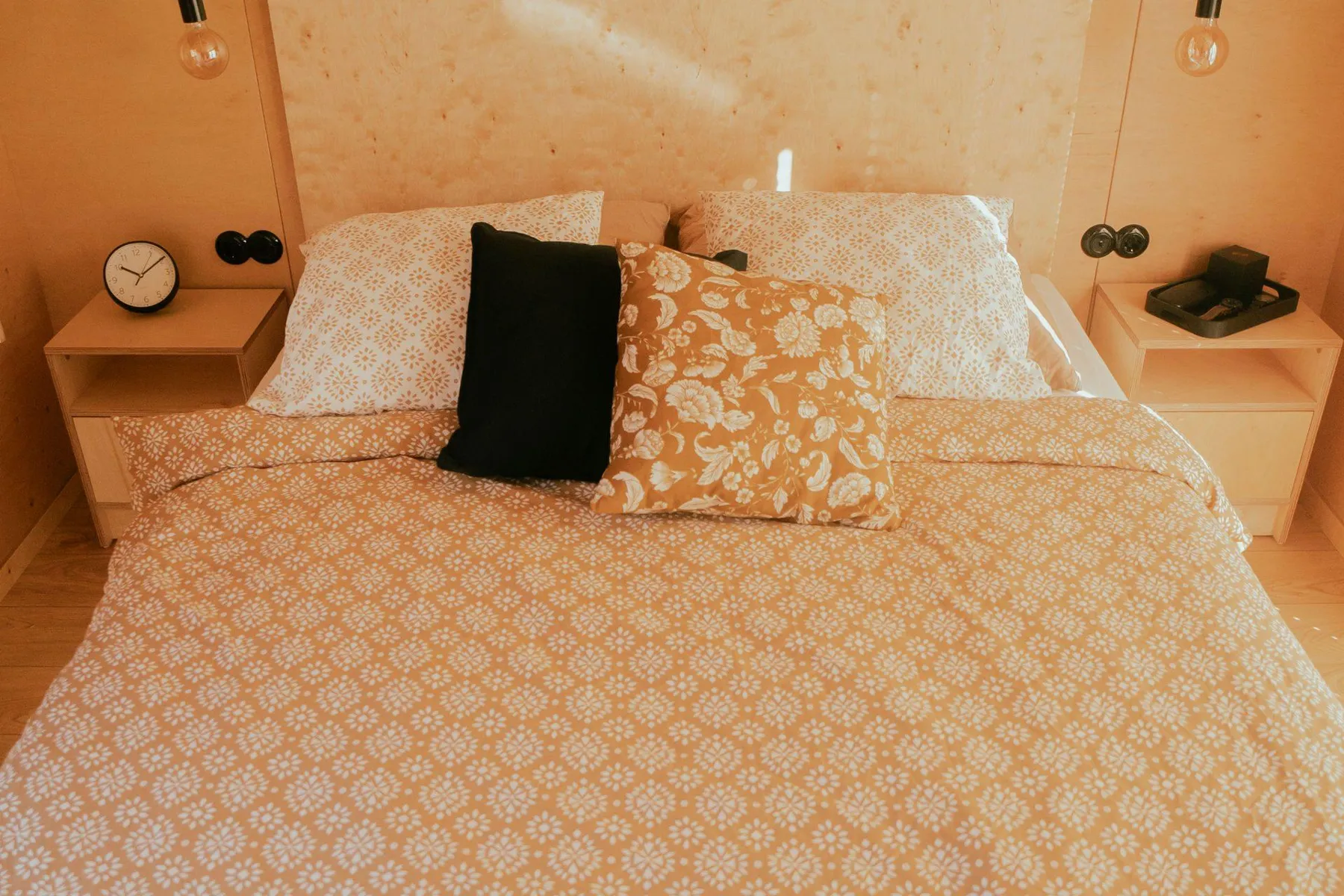

BEDROOM

  • Hinged wooden door

  • Double bed with normal or lifting frame
    160 x 200 cm

  • Wardrobe with two doors

  • Two bedside tables 42 x 50 cm

  • Chest of 3 drawers

  • Dressing table (wall-mounted shelf)

  • Pouf for dressing table

  • Mirror

  • 3 decorative posters (design can be chosen later)

  • TV (43 inches) or TV preparation

​
Choose your favourite colour for furniture and floor.

SLEEPING LOFT

  • Slatted frames

  • 2 bedside tables

  • Cabinets in the walk-in closet

​
Choose your favourite colour for furniture and floor.
widok3_sypialnia antresola.png

Technical Specifications

DIMENSIONS

EXTERIOR

INTERIOR

  • Length: 11 m
  • Width: 3,45 m
  • Height: 4,34 m
  • Steel frame with wheels (for small movements on site only)
  • Weight: 10 t
  • ThermoWood and metal siding
  • Well insulated 3-pane windows and exterior door from tempered glass (double leaf door, 90 + 90*200 cm)
  • Lightweight and durable aluminum roof
  • Winter insulated with mineral wool
  • 44 sqm living area
  • Room height of 3,05 m
  • Siding from Huntonit, spruce panel or plywood
  • Laminate ground floor

KITCHEN

BATHROOM

HEATING

  • Lower and upper cabinets of veneer or MDF
  • Three-layer oak board countertop
  • Protective glass behind countertop
  • Electric or gas stove
  • Induction or gas cooktop
  • Big fridge/freezer
  • Kitchen hood
  • Wet-room approved walls from fibo trespo panels
  • Laminate or PVC floor
  • Shower cabin from glass
  • Flush toilet, composting toilet, Separett Villa or Cinderella incinerating toilet
  • Cupboard with washing basin
  • Infrared or regular mirror
  • Washing machine preparation
Various heating options both for on-grid and off-grid heating:
  • Electric radiators
  • Infrared heating mirror
  • ​Electric towel radiator
  • Infrared floor heating
  • Air-to-air heat-pump
  • Wood stove
  • Pellet stove

ELECTRICITY

PLUMBING

VENTILATION

  • 3-phase, 230V or 400V, 32A or 16A
  • Country specific adjustment
    (e.g Norway)
  • LED spots & pendant lamps
  • Dimmer
  • Solar system
  • Easy exterior connection
  • Stainless steel pipes
  • Electric or gas hot water heaters
  • Water tank & pump
  • Rainwater harvesting system
  • Ventilation in living room, kitchen and bathroom
  • ​Recuperator
Note: all photos on the website are sample images. The options may differ in terms of appearance and color.
